NON-CONTACT INFRARED THERMOMETERS

- KTL-ZA (500~3,000°C)

- KTL-ZB (250~1,000°C)

- KTL-P1 (200~2,000°C)

KEY FEATURES

  • On-line or portable use (with optional pistol grip).
  • Fast response with variable sampling rate from 0.01 to 1 seconds.
  • 2-way digital display: inside the viewfinder and external on side panel.
  • Precision optics with zoom: ø 1mm spot at 270mm measuring distance.
  • Standard 4~20 mA and 0~10 V DC analog output and RS232C interface through the AC adopter.



KTL SERIES TECHNICAL SPECIFICATIONS

Model/specifications KTL-ZA KTL-ZB KTL-P1
Temperature range 500~3,000°C 250~1,000°C 200~2,000°C
Sensor Si InGaAs InGaAs
Spectral response 0.9 mm   1.6 mm   1.6 mm
Accuracy ±0.5% of full scale ±1% of full scale ±1% of full scale
Repeatability ± 0.3% of reading ±1 digit ± 0.1% of reading ± 1 digit ± 0.1% F.S. (at e=1.00)
Resolution 1°C
Emissivity adjustment

Adjustable from 0.1 to 1.0 in steps of 0.01

Response time

Adjustable from 0.01 to 1.0 seconds

Optical System

Coaxial single lens reflex variable focusing type

Focusing range

270 mm to ¥

Target spot

ø1 mm at 270mm, f4 mm at 675mm, f100mm at 13,635mm

ø1mm at 270mm, f100mm at 13,635mm

Display

2-way, 4 digit LED, inside the viewfinder and on side panel

Measuring mode

CONT : Continuous measurement

PEAK : Maximum value measurement

VALLEY : Minimum value measurement

HOLD : Display hold
Outputs

Analog: 4~20mA DC or 0~10V DC

Digital: RS232C interface

Analog: 4~20mA DC or   0~10V DC

Digital: RS232C, 19200, 9600, 4800, 2400, 1200, 600, 300, 150, 75 ASCII code 7 bit, 1 stop, non-parity

Power supply 10 ~ 15 V DC PS-5 AC 85~135V AC/ 180~250V AC
Ambient temperature 0 ~ 50°C 0 ~ 45°C
Dimensions 278 mm (D) x 79 mm (W) x 103 mm (H)
Weight 1.4 Kgs
Mounting

STATIONARY: 2 X U1/4 X 20 tapped holes

PORTABLE: Using optional pistol grip GL--1

Standard accessories

Protective cap and multi-function AC adopter PS-5 (220VAC ±10%, 50 Hz) that provides analog and digital outputs and battery charging for pistol grip

Optional accessories

Pistol Grip GL-DX (with built-in re-chargeable batteries and battery charger), Swivel Head LA-1 and Air Purge Unit F02-001 (with built-in air generator)

AC Adapter PS-5

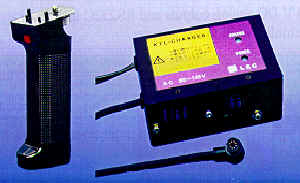

Pistol Grip & battery charger GL-DX

Swivel Head  LA-1
